Integrate with Keras¶

Keras is an API designed for human beings, not machines. Keras follows best practices for reducing cognitive load: it offers consistent & simple APIs, it minimizes the number of user actions required for common use cases, and it provides clear & actionable error messages. It also has extensive documentation and developer guides.

Comet automatically logs metrics, parameters, and histograms, and more from your Keras code.

Open In Colab

Start logging¶

Log automatically¶

By integrating with Keras, Comet automatically logs the following items:

  • Model and graph description
  • Steps and epochs
  • Metrics (such as loss and accuracy)
  • Hyperparameters
  • Optimizer Parameters (such as the learning rate, beta decay rate, and more)
  • Number of trainable parameters
  • Histograms for weights and biases
  • Histograms for activations
  • Histograms for gradients

Log histograms automatically¶

By integrating with Keras, Comet automatically logs histograms for:

  • Weights and biases
  • Gradients
  • Activations

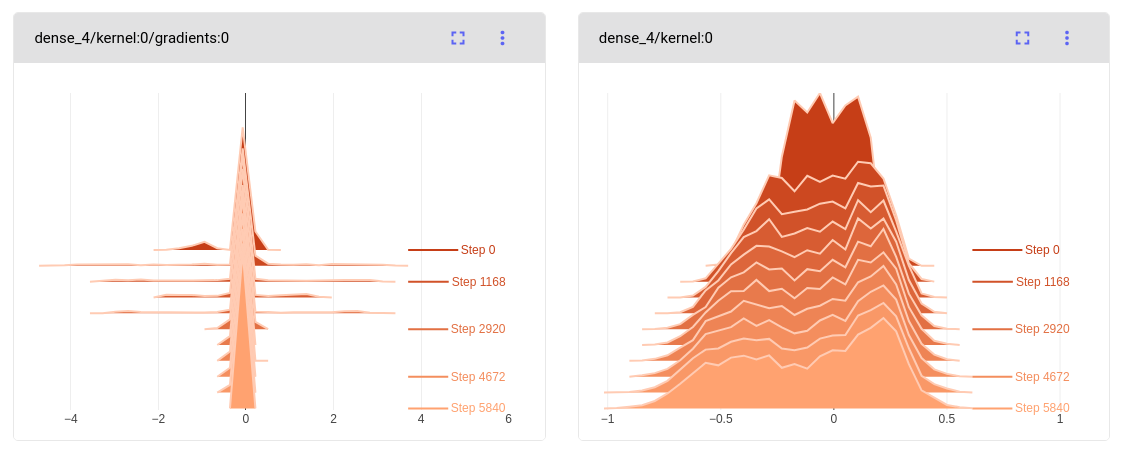

These histograms appear on the Histogram tab in the single experiment pages:

The histograms for weights and biases are logged for all layers before training, and for every auto_histogram_epoch_rate epochs (default 1).

The histogram activations are logged for the selected input data or targets (comet.keras.histogram_activation_index_list with a default of the first pattern), at the selected layers (comet.keras.histogram_activation_layer_list with a default of the last layer).

For activation histograms:

ItemConfiguration Setting
which inputscomet.keras.histogram_activation_index_list
which layerscomet.keras.histogram_activation_layer_list

Info

To automatically log activations, you must be using TensorFlow, version 1.13 or higher. Inputs must be in a tensor or numpy format (for example, DataSets are not yet supported). Note that logging activations from an input layer do not work with TensorFlow version 1.

The histogram gradients of the weights and biases with respect to the loss are logged for the selected inputs or targets (comet.keras.histogram_gradient_index_list with a default of the first pattern), at the selected layers (comet.keras.histogram_gradient_layer_list with a default of the last layer).

For gradient histograms:

ItemConfiguration Setting
which inputscomet.keras.histogram_gradient_index_list
which layerscomet.keras.histogram_gradient_layer_list

Info

To automatically log gradients, you must be using TensorFlow, version 2.2.1 or higher, or Keras 2.4.3 and higher. Inputs and targets must be in a tensor or numpy format (e.g., DataSets are not yet supported).

Each input of the index lists is composed of an empty string or a list of index positions. If more than one index is given, separate the values with a comma.

For example, to indicate that you would like to log the activations for the first three input data examples, use:

export COMET_KERAS_HISTOGRAM_ACTIVATION_INDEX_LIST="0,1,2"

Each item in the layer list is composed of a list of index positions, negative index positions, or layer names. If more than one value is given, separate them with a comma.

For example, to indicate that you would like to log the gradients at the first layer, last layer, and a layer named "hidden", use:

export COMET_KERAS_HISTOGRAM_GRADIENT_LAYER_LIST="0,-1,hidden"

Similarly, if you would like to log the activations from these layers use:

export COMET_KERAS_HISTOGRAM_ACTIVATION_LAYER_LIST="0,-1,hidden"

Each of the histograms logged can have a "prefix" attached to the histogram name in the UI. The prefix is set through the configuration setting comet.keras.histogram_name_prefix and can be composed of any of the following components:

Histogram name prefix componentMeaning
{model_name}Name of the Keras model
{layer_name}Name of the Keras layer
{layer_num}Number of the Keras layer
{max_digits}Number of digits in last Keras layer

By default, the prefix is {layer_num:0{max_digits}d} (using Python's formatting syntax) which would give prefixes like:

01/input/kernel:0
05/hidden/bias:0
10/output/activation:all

Finally, you can control the following items as well:

ItemMeaningDefault value
comet.keras.histogram_batch_sizenumber of patterns to process at once when logging all1000
comet.logging.metrics_ignorenames of metrics to ignorekeras:batch_size, keras:batch_batch
comet.logging.parameters_ignorenames of parameters to ignorekeras:verbose, keras:do_validation, keras:validation_steps

For more details on passing in parameters to the experiment, please see Experiment(). For more details on setting up configuration variables, see Python Configuration.

Validation metrics¶

If you provide validation_data to the Keras fit function, metrics will be logged for each validation batch with the validate prefix. For example, the following batch metrics will be logged:

  • loss for every epoch
  • batch_loss for every training batch (depending on the value of auto_metric_step_rate)
  • validate_batch_loss for every validation batch (depending on the value of auto_metric_step_rate)

The validation metrics are logged with their own step to avoid interfering with the training metrics.

Warning

Note that this behavior was changed in the Comet Python SDK 3.33.6. Previously, the validation metrics were logged with the same steps as the training metrics, and the step was increased for every training or validation batch.

If you are resuming the training, you will need to manually set the validation step in the Keras callback. Here is an example of how to properly set everything up:

experiment = ExistingExperiment(experiment_key=COMET_EXPERIMENT_KEY)
experiment.set_step(LAST_TRAINING_STEP)
experiment.set_epoch(LAST_EPOCH)

keras_callback = experiment.get_callback(
    "keras", initial_validation_step=LAST_VALIDATION_STEP
)

# Resume training
model.fit(
    x_train,
    y_train,
    epochs=TOTAL_EPOCHS,
    initial_epoch=LAST_EPOCH,
    validation_data=(x_test, y_test),
    callbacks=[keras_callback],
)

End-to-end example¶

Here is a simple end-to-end Keras example that uses a Dense neural network on the MNIST dataset.

For more examples using Keras, see our examples GitHub repository.

Install dependencies¶

pip install comet_ml tensorflow numpy

Run the example¶

from comet_ml import start, login, ExperimentConfig

login()

experiment = start(project_name="comet-example-keras-doc", experiment_config=ExperimentConfig(
    auto_histogram_weight_logging=True,
    auto_histogram_gradient_logging=True,
    auto_histogram_activation_logging=True,))

from tensorflow import keras
from tensorflow.keras.datasets import mnist
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Dropout
from tensorflow.keras.callbacks import EarlyStopping

batch_size = 128
num_classes = 10
epochs = 20
num_nodes = 64
optimizer = 'adam'
activation = 'relu'

# the data, shuffled and split between train and test sets
(x_train, y_train), (x_test, y_test) = mnist.load_data()

x_train = x_train.reshape(60000, 784)
x_test = x_test.reshape(10000, 784)
x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255
print(x_train.shape[0], 'train samples')
print(x_test.shape[0], 'test samples')

# convert class vectors to binary class matrices
y_train = keras.utils.to_categorical(y_train, num_classes)
y_test = keras.utils.to_categorical(y_test, num_classes)

#these will all get logged
params={'batch_size':batch_size,
        'epochs':epochs,
        'layer1_type':'Dense',
        'layer1_num_nodes':num_nodes,
        'layer1_activation':activation,
        'optimizer':optimizer
}
model = Sequential()
model.add(Dense(num_nodes, activation='relu', input_shape=(784,)))
#model.add(Dense(256, activation='relu'))
model.add(Dense(num_classes, activation='softmax'))

#print model.summary() to preserve automatically in `Output` tab
print(model.summary())

model.compile(loss='categorical_crossentropy',
              optimizer=optimizer,
              metrics=['accuracy'])

#will log metrics with the prefix 'train_'
with experiment.train():
    history = model.fit(x_train, y_train,
                        batch_size=batch_size,
                        epochs=epochs,
                        verbose=1,
                        validation_data=(x_test, y_test),
                        callbacks=[EarlyStopping(monitor='val_loss', min_delta=1e-4,patience=3, verbose=1, mode='auto')])

#will log metrics with the prefix 'test_'
with experiment.test():
    loss, accuracy = model.evaluate(x_test, y_test)
    metrics = {
        'loss':loss,
        'accuracy':accuracy
    }
    experiment.log_metrics(metrics)

experiment.log_parameters(params)
experiment.log_dataset_hash(x_train) #creates and logs a hash of your data

Try it out!¶

Don't just take our word for it, try it out for yourself.

Use the Comet Keras callback¶

Comet logs your experiment through a callback executed when you run model.fit() in Keras. You do not need to add this callback yourself, we do it for you automatically. However, if you ever need to access the callback manually, simply call experiment.get_keras_callback().

You can use this callback to log additional data to Comet such as model checkpoints, images, audio, and more, as Experiment Assets, Models or Artifacts.

Report manually¶

If you want to log data that isn't already automatically logged or handled by the Keras callback, check out the logging methods available in Comet's Experiment object.

Configure Comet for Keras¶

You can control what is automatically logged by Comet through an experiment parameter, environment variable, or configuration setting:

ItemExperiment ParameterEnvironment SettingConfiguration Setting
model/graph descriptionlog_graphCOMET_AUTO_LOG_GRAPHcomet.auto_log.graph
metricsauto_metric_loggingCOMET_AUTO_LOG_METRICScomet.auto_log.metrics
metric logging rateauto_metric_step_rateCOMET_AUTO_LOG_METRIC_STEP_RATEcomet.auto_log.metric_step_rate
hyperparametersauto_param_loggingCOMET_AUTO_LOG_PARAMETERScomet.auto_log.parameters
command-line argumentsparse_argsCOMET_AUTO_LOG_CLI_ARGUMENTScomet.auto_log.cli_arguments
weights/biasesauto_histogram_weight_loggingCOMET_AUTO_LOG_HISTOGRAM_WEIGHTScomet.auto_log.histogram_weights
gradientsauto_histogram_gradient_loggingCOMET_AUTO_LOG_HISTOGRAM_GRADIENTScomet.auto_log.histogram_gradients
activationsauto_histogram_activation_loggingCOMET_AUTO_LOG_HISTOGRAM_ACTIVATIONScomet.auto_log.histogram_activations
histogram logging rateauto_histogram_epoch_rateCOMET_AUTO_LOG_HISTOGRAM_EPOCH_RATEcomet.auto_log.histogram_epoch_rate

For more information about using environment parameters in Comet, see Configure Comet.

In addition, you can control exactly which inputs at which layers are logged for activations and gradient histogram logging.
